EMMA LAKE

2462 SQ FT | 3-4 BEDROOMS | 2.5 BATHS | 2 BAYS | 59 FT WIDE | 65 FT DEEP

Skip to product information
1 of 5

Single-Level Modern Transitional Home with Courtyard

Regular price $1,400.00 USD
Regular price Sale price $1,400.00 USD
Sale Sold out
Select File Type To Purchase:

Images shown on this page may have been modified from original plan.

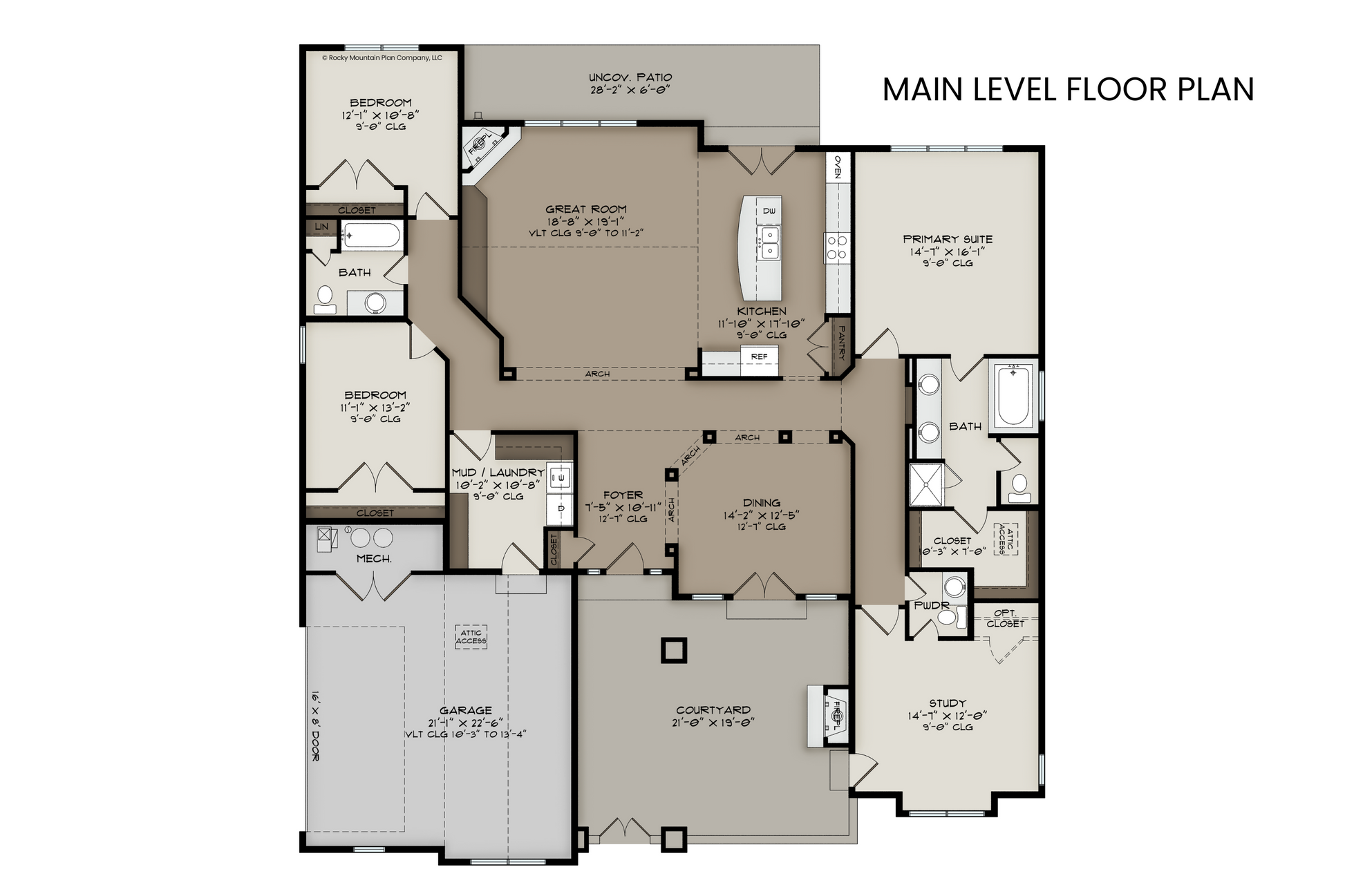

HOUSE PLAN FEATURES:

  • Gated courtyard entrance with an outdoor fireplace for entertaining
  • Study / fourth bedroom with a courtyard entry perfect for a home office
  • Great room with a statement fireplace
View full details

SQUARE FOOTAGE

Main Level 2462
Total Finished 2462
Garage 495
Patio 187
Outdoor Living 435 Courtyard

OTHER SPECIFICATIONS

Bedrooms 3-4
Full Bathrooms 2
Powders 1
Garage Bays 2
Garage Entry Side
Width of House 59 ft
Depth of House 65 ft
Building Height 20 ft
Ceiling Height - Main Level 9’, 12-7", Vaulted
Foundation Type Crawl Space
Exterior Wall Construction 2x6
Roof Pitches 6/12

Emma Lake is a beautifully crafted single-level ranch that blends comfort, elegance, and versatility. With its modern transitional lodge style, this home is ideal for families in need of a flexible layout, retirees seeking stair-free convenience, and builders. Emma Lake is designed to provide both functional spaces and stylish details that make everyday living a joy.

Key Features of the Emma Lake Plan

  • Single-Level Modern Transitional Lodge Design: 2,462 sq ft layout with 3 bedrooms, 2.5 baths, and a side-entry 2-car garage, ideal for families, downsizers, or builders seeking a versatile and elegant design.

  • Inviting Courtyard Entrance: Enter through a gated 435 sq ft courtyard featuring a stunning outdoor fireplace, creating a perfect space for relaxing or entertaining.

  • Elegant Great Room with Vaulted Ceilings: The great room offers rear site views, a corner fireplace, and patio access, providing an airy and welcoming environment for entertaining or being with family.

  • Open Kitchen with Large Island: The kitchen includes a spacious island that flows into the great room and dining area, making it perfect for family meals and entertaining.

  • Private Primary Suite: The primary suite is located at the rear of the home for added privacy and features a spacious walk-in closet and a bath with a shower and tub.

  • Flexible Bedroom and Office Spaces: Two additional bedrooms share a bath, while a spacious study offers a private entrance from the courtyard, making it perfect for use as a home office or a potential fourth bedroom.

  • Touches of Elegance: Arched openings throughout the plan add a refined touch, blending the home’s modern elements with classic details.

Ideal for a Range of Lifestyles

Emma Lake offers the perfect combination of comfort, elegance, and adaptability. Its single-level layout makes it ideal for downsizers who want to avoid stairs, while the spacious bedrooms and open living areas cater perfectly to growing families. Developers will appreciate the timeless style and functional design that is sure to appeal to a wide range of buyers.

Explore more one-level house plans to find the perfect fit for your next project.

Why Choose the Emma Lake Plan?

  • Versatile Single-Level Living: With a spacious 2,462 sq ft layout, this plan suits downsizers, growing families, and developers looking for broad market appeal.

  • Private Courtyard for Outdoor Enjoyment: Gated courtyard with an outdoor fireplace offers a stylish and secluded outdoor living space.

  • Elegant Design Elements: Vaulted ceilings, arched openings, and a modern transitional lodge aesthetic create a home that feels both sophisticated and welcoming.

  • Flexible Space for Work or Guests: A dedicated study with courtyard access is perfect for a home office, or can be easily adapted into a fourth bedroom.

Interested in more timeless homes with a modern appeal? Check out our Transitional House Plans Collection for more inspiration.

This floor plan is also available in a European Lodge style as Waterton Lake.

QUESTIONS ABOUT EMMA LAKE:

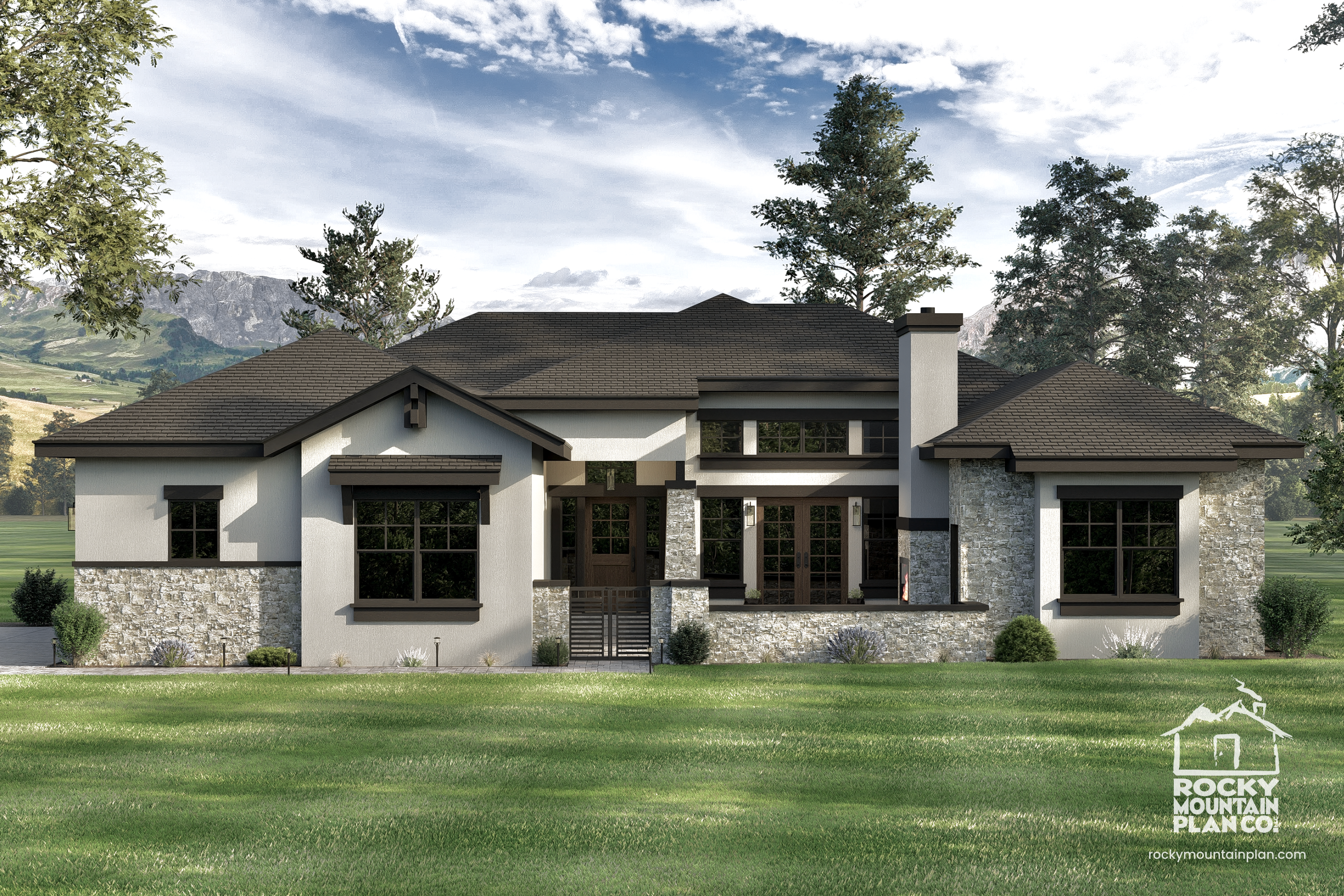

Exterior view of Emma Lake, a modern transitional lodge-style single-level home with a gated courtyard and side-entry garage.

What's included in my plan purchase?

Each plan includes a full digital plan set with floor plans, exterior elevations, sections, roof ridge layout, foundation layout, electrical plans, and more. You’ll choose between PDF or CAD file formats at checkout. Every plan includes a license to build one home unless an Unlimited Building License is selected.

For more information, check out What's Included in a Digital Plan Set?

Can I preview a plan before buying?

Yes! We offer Bid Sets for $500. These include the floor plans and elevation views – labeled “Not For Construction” – and are ideal for getting initial cost estimates from builders. If you move forward with the plan, the $500 counts as credit toward your full plan set. To request a bid set, contact us and let us know which plan you're interested in!

Can I choose a different foundation type?

Yes! Many of our plans are available with multiple foundation options, including Slab, Crawl Space, and Daylight or Walkout Basement foundations. You’ll choose the option that best fits your lot during checkout, and your Foundation Layout Plan will reflect your selection.

Note: Some selections may require additional processing time.

Each plan includes a Foundation Layout Plan that shows overall dimensions and references to footings and support walls. This layout provides your builder with a strong starting point, but please note that it does not include structural engineering.

💡 Not sure which foundation type is right for your site? Here's a quick guide:

  • Daylight or Walkout Basement: Ideal for sloped lots or view-oriented properties. Includes a lower level floor plan with full-size windows and often direct outdoor access (Walkout) on one side.
  • Slab: Best for flat lots in warmer climates. Simple, cost-effective, and low-maintenance. Includes main and upper level floor plans only.
  • Crawl Space: Great for mildly sloped lots or regions with seasonal freezing. Offers easy access to plumbing and electrical systems. Includes main and upper level floor plans only.

Important:

Because site conditions vary, you’ll need to consult a local structural engineer to meet all building codes and safety requirements. Your engineer will evaluate your soil type, frost depth, slope, wind and seismic loads, and recommend any necessary reinforcements specific to your location.

What is a right-reading reverse plan?

This is a mirrored version of the original plan, with all text and dimensions flipped so they’re still readable. It’s perfect for optimizing the layout for your lot or sun exposure.

Note: This option may add 3-4 additional business days for processing time.

What's the difference between Digital PDF and CAD files?

The plan format you choose depends on how you intend to use the design and whether you plan to make changes.

  • PDF files are ready-to-print, easy to view, and suitable for most builders if you don’t plan on making significant changes. These files are not directly editable, but your local professionals may be able to mark up small redline adjustments.
  • CAD files (Computer-Aided Design) are editable .dwg files used by architects, engineers, and designers for customizations. If you plan to make changes – either before permitting or during construction – CAD files offer the greatest flexibility and precision. Most professionals will prefer working from the CAD version, especially for structural or site-specific adjustments.

📌 When you purchase the CAD format, you'll also receive the Digital PDF Plan Set.

If you're working with a local designer, architect, or engineer, we highly recommend choosing the CAD file option for the most efficient workflow.

If you’re unsure, you can always start with the PDF. CAD files can be added later for a flat rate of $500 if needed – simply get in touch with us and we’ll get you taken care of!

Can I make changes to my house plan?

Absolutely! Many of our clients choose a plan they love, then work with a local designer, architect, or engineer to make the changes they need. This is often the most efficient and cost-effective path forward – local professionals are familiar with regional building codes, permitting processes, and site-specific requirements, which can vary greatly across the country.

  • If you're making minor edits – like flipping the plan to create a Right-Reading Reverse version – we offer flat-rate pricing upon checkout and can turn that around quickly.
  • For larger customizations, like adjusting square footage, adding a basement, adjusting the ceiling heights, or changing the architectural style, we offer modification services through our founding design studio, LGA Studios, based in Colorado. We’re happy to provide a quote or help you decide if your project would be better handled by your local professionals.

Not sure where to start? Reach out to uswe’ll help point you in the right direction.

What is a Building License, and can I build more than once?

Your plan purchase includes a single-use license to build the home once.
If you're a builder or planning multiple builds, you can add an Unlimited Building License at checkout.

When will I receive my plan files?

Upon purchase and agreement to the terms of our license agreement, your plan files will be digitally delivered via email within 1-2 business days. Please note that some plan selections – such as right-reading reverse options – may add an additional 3-4 business days.

Are there any building restrictions?

No building restrictions.

What else do I need before building?

Building requirements vary by location. Here's what you may need before you can break ground:

  • Site Plan: Shows where the home will sit on your property
  • Site-Specific Engineering: A licensed local professional will assess soil conditions, frost depth, slope, seismic risk, and more
  • Local Code Compliance: Our plans meet the 2018 International Residential Code (IRC), but your municipality may have additional requirements
  • Professional Stamp (if required): States like CA, NY, NJ, IL, and NV often require stamped drawings by a local architect or engineer

We recommend checking with your local building department for a full list of what’s required in your area.
